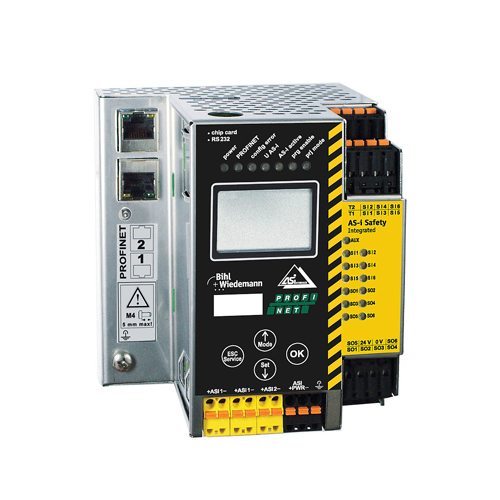

Bihl+wiedemann Vietnam,Cổng ASi-3 PROFINET BWU3274 Bihl+wiedemann

BWU3274 Bihl+wiedemann

Product description

ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via PROFINET or RS232 diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20

Technical data

Type

Safety, PROFINET

Model

Gateway with integrated Safety Monitor

Protection rating

IP20

Fieldbus interface

PROFINET

Number of ASi networks, number of ASi Master

2 ASi networks, 2 ASi-3 Masters

Integrated decoupling, ASi current measurement in the gateway

yes, max. 4 A/ASi network

Diagnostic and configuration interface

Ethernet fieldbus + RS 232

Recognition of duplicate ASi addresses

yes

ASi fault detector

yes

Programming in C

optional





100% Germany / Turkey Origin

Bihl+wiedemann Vietnam

Model: BWU3274
 ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi masters
 ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs
 in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic
 and configuration via PROFINET or RS232 diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20



=====================================================
