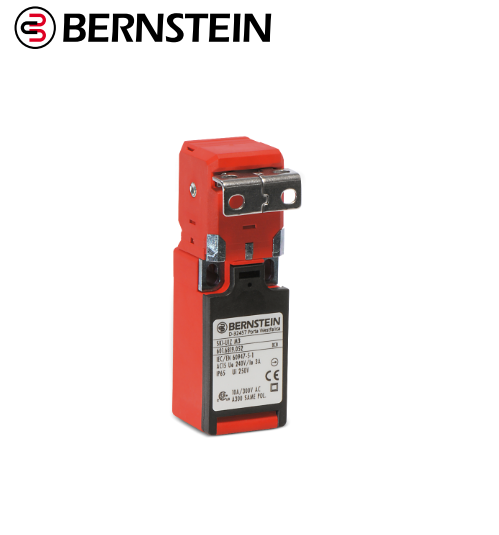

Công tắc an toàn (Safety switch)_Article number: 6016819123

Công tắc an toàn (Safety switch) - Bernstein Viet Nam

Article number: 6016819123

Electrical Data:

Rated insulation voltage: Ui 250 V AC

Conv. thermal current: Ithe 10 A

Utilization category: AC-15, Ue/Ie 240 V / 3 A

Direct opening action: acc. to IEC/EN 60947-5-1, annex K

Short-circuit protective device: Fuse 10 A gG

Protection class: II, totally insulated

Enclosure: Thermoplastic, glass fibre reinforced (UL 94-V0)

Cover: Thermoplastic, glass fibre reinforced (UL 94-V0)

Actuator:  Separate actuator (metal)

Extraction force: 10 N

Ambient air temperature: -30° C ... +80° C

Contact type:  1 NC, 1 NO (Zb)

Mechanical life: 1 x 106 operating cycles

Switching frequency: ≤ 30 / min
