Towa Seiden Vietnam,Công tắc mức dạng xoay HL-400-Z, HL-400GZ Towa Seiden

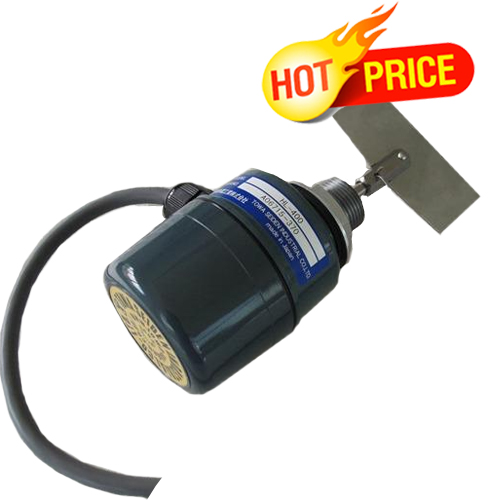

Towa Seiden HL-400-Z, HL-400GZ Rotary Paddle Type Level Sensor - Công tắc mức dạng xoay

Mã đặt hàng: HL-400-Z, HL-400GZ

Nhà sản xuất: Towa Seiden



Nhà phân phối: Đại lý Towa Seiden Vietnam



Mô tả sản phẩm Towa Seiden HL-400-Z Công tắc mức cánh khuấy dạng xoay

Towa Seiden HL-400-Z Công tắc mức cánh khuấy dạng xoay đo mức bằng việc tiếp xúc với vật thể đo, phát hiện và truyền tín hiệu đo. Công tắc mức dùng cánh khuấy đo với độ nhạy cao (cho cả các chất đo có mật độ thấp), và có thể sử dụng ngay cả khi thay thế chất đo trong cùng một bồn chứa.
Với nguyên tắc vận hành đơn giản, có thể xoay trộn , rung lắc trong quá trình đo thì sản phẩm này phù hợp hầu hết cho việc đo mức các chất rắn.

Đặc tính của sản phẩm Towa Seiden HL-400-Z

  • Lắp đặt và điều khiển dễ dàng

  • Không thể điều chỉnh độ nhạy

  • Nhiệt độ thay đổi không đáng kể sẽ không làm ảnh hưởng hoạt động máy.

  • Phù hợp với đo mức cho những bồn chứa chất dạng hạt.

Thông số kỹ thuật của HL-400Z Towa Seiden

Mounting Equivalent

Tightening the base mounting plate with a locknut

Paddle type

400 (L1=35mm, L2=80mm)

Insert length

L=85mm

Power supply

100/110V AC or 200/220V AC

Paddle

SUS304

Shaft

SUS304

Power comsumption

1.5W

Contact capacity

250V AC 5A or 250V AC 0.1A

Color

7.5BG4/1.5

Seal

Nitrile rubber

Lead outlet

G1/2’’ or Belonging to lead wire 0.5m

Thông số kỹ thuật của HL-400GZ Towa Seiden

Mounting Equivalent

Tightening the base mounting plate with a locknut

Paddle type

400 (L1=35mm, L2=80mm) or

400(L1=35mm, L2=55mm)

Insert length

L=150mm or 200mm

Power supply

100/110V AC or 200/220V AC

Paddle

SUS304

Shaft

SUS304

Power comsumption

1.5W

Contact capacity

250V AC 5A or 250V AC 0.1A

Color

7.5BG4/1.5

Protective tube

SUS304 or Aluminum

Seal

Nitrile rubber

Lead outlet

G1/2’’ or Belonging to lead wire 0.5m

Các phiên bản của Rotary Paddle Type Level Sensor - Công tắc mức dạng xoay Towa Seiden

  • Model: HL-400Z Length 85mm
    Rotary Paddle Type Level Switch
    Paddle: W-35x80mm

  • Model: HL-400GZ Length 150mm
    Rotary Paddle Type Level Switch
    Paddle: W-35x80mm

  • Model: HL-400GZ Length 150mm
    Rotary Paddle Type Level Switch
    Paddle: W-35x55mm

  • Model: HL-400GZ Length 200mm
    Rotary Paddle Type Level Switch
    Paddle: W-35x80mm

  • Model: HL-400GZ Length 200mm
    Rotary Paddle Type Level Switch
    Paddle: W-35x55mm

http://www.towa-seiden.co.jp/img/en2/download/RotaryPaddle/manual/400_catalog_english.pdf
