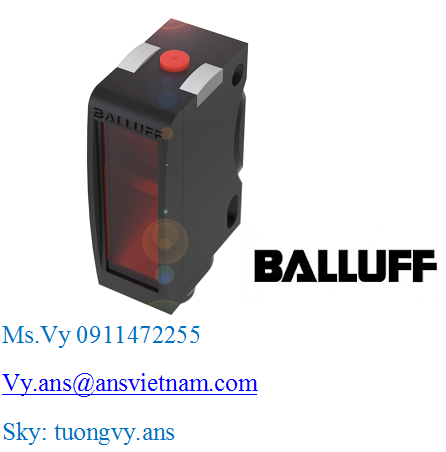

Contrast sensor

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: BALLUFF VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

Variants
Order Code
Dimension
Connection
Cable
Interface
Switching output
Range
BKT 18KF-001-P-02 BKT000F Ø 18 x 14 mm   2.00 m PNP PNP Normally closed (NC);PNP Normally open (NO) (Pins 4-2) 8...12 mm
BKT 18KF-001-P-S4 BKT000H Ø 18 x 14 mm M12x1-Male, 4-pole, A-coded   PNP PNP Normally closed (NC);PNP Normally open (NO) (Pins 4-2) 8...12 mm
BKT 21M-002-N-S4 BKT000W 12 x 50 x 42.5 mm M12x1-Male, 4-pole, A-coded   NPN NPN NO/NC 17...21 mm
BKT 21M-002-P-S4 BKT000Y 12 x 50 x 42.5 mm M12x1-Male, 4-pole, A-coded   PNP PNP NO/NC 17...21 mm
BKT 67M-001-U-S92 BKT0001 32 x 64 x 82 mm M12x1-Male   Analog, voltage, PNP/NPN PNP/NPN NO/NC 6...12 mm
BKT 67M-002-U-S92 BKT0002 32 x 64 x 82 mm M12x1-Male   Analog, voltage, PNP/NPN PNP/NPN NO/NC 6...12 mm
BKT 67M-003-U-S92 BKT0003 32 x 64 x 82 mm M12x1-Male   Analog, voltage, PNP/NPN PNP/NPN NO/NC 6...12 mm
BKT 67M-004-U-S92 BKT0004 32 x 64 x 82 mm M12x1-Male   Analog, voltage, PNP/NPN PNP/NPN NO/NC 6...12 mm
BKT 67M-005-U-S92 BKT0005 32 x 64 x 82 mm M12x1-Male   PNP/NPN PNP/NPN NO/NC 6...12 mm
BKT 67M-006-U-S92 BKT0006 32 x 64 x 82 mm M12x1-Male   PNP/NPN PNP/NPN NO/NC 6...12 mm
BKT 6K-002-N-02 BKT0013 12 x 37.9 x 21.6 mm   2.00 m NPN NPN NO/NC 1...250 mm
BKT 6K-002-N-S75 BKT0011 12 x 41.5 x 21.6 mm M8x1-Male, 4-pole   NPN NPN NO/NC 1...250 mm
BKT 6K-002-P-02 BKT0012 12 x 37.9 x 21.6 mm   2.00 m PNP PNP NO/NC 1...250 mm
BKT 6K-002-P-S49 BKT000Z 12 x 41.5 x 21.6 mm M8x1-Male, 3-pole   PNP PNP NO/NC 1...250 mm
BKT 6K-002-P-S75 BKT0010 12 x 41.5 x 21.6 mm M8x1-Male, 4-pole   PNP PNP NO/NC 1...250 mm
BKT M-15C-U-S4 BKT000N 31 x 97.8 x 62.3 mm M12x1-Male, 4-pole, A-coded   Analog, voltage, PNP/NPN PNP/NPN NO/NC 7...11 mm
BKT M-45-U-S4 BKT000R 31 x 97.8 x 62.3 mm M12x1-Male, 4-pole, A-coded   Analog, voltage, PNP/NPN PNP/NPN NO/NC
BKT M-52-U-03 BKT000T 31 x 105.3 x 62.3 mm   3.00 m Analog, voltage, PNP/NPN PNP/NPN NO/NC
BKT M-71-U-03 BKT000U 31 x 105.3 x 62.3 mm   3.00 m Analog, voltage, PNP/NPN PNP/NPN NO/NC 7...11 mm
