CSG-200 Countersink Gauge (digital)

Xuất sứ: CHINA

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: CANNEED INSTRUMENT VIETNAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

*) Mô tả:

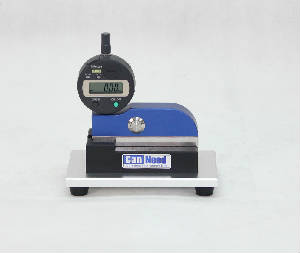

The CanNeed “CSG-200 Countersink Gauge (digital)” is a Digital gauge for measuring Countersink depth parameters (the depth of beader of can). With the Mitutoyo 0.01mm Resolution Digital Indicator. The gauge can be connected to a computer or SPC system via the adapter and cable, so that to avoid the manual recording and personal error. The gauge can also combine with Canneed Seam Monitors and import the measurement data into computer.

Technical data (changes reserved):
Resolution : 0,01 mm
Measure range : 0-10 mm (other range by order)
Power supply : Battery, SR-44, approx.5.000 h


Without cutting or destructing the sample cans, the “STG-200-d Seam Thickness Gauge (Digital)”, “SLG-d Seam Length Gauge” and “CSG-d Countersink Gauge (Digital)” compose the quick measurement tools for double seam quality control.
