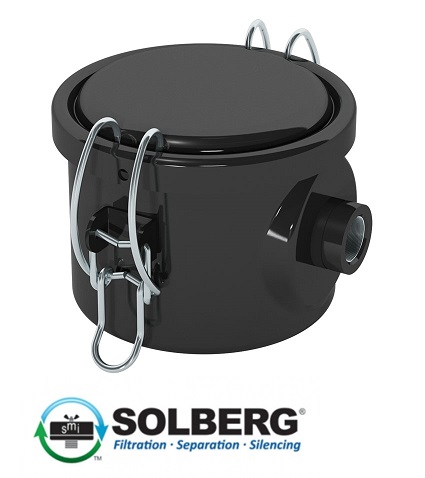

CSL-824-076HCB Particulate Removal Solberg Vietnam ANSdanang

MODEL
CSL-824-076HCB
INLET CONNECTION SIZE (IN.)
.75
OUTLET CONNECTION SIZE (IN.)
.75
CONNECTION TYPE
BSPP
FLOW (M3/HR)
41
DIM A (MM)
95
DIM B (MM)
57
DIM C (MM)
95
DIM D (MM)
48
DIM E (MM)
76
WEIGHT (KG)
0.39
MEDIA
Paper
MICRON RATING
2
FINISH
Black Powder
QUANTITY PER BOX
2
CASE QUANTITY
8
REPLACEMENT ELEMENT
824
  • OVERVIEW
  • PRODUCT DOCUMENTS
  • ALTERNATIVE SOLUTIONS

Features

3/8" - 4" Connections:

  • Seamless drawn housings
  • O‐ring seal
  • Corrosive resistant gray powder coat carbon steel
  • Stainless steel torsion clips

3" - 12" Connections:

  • Heavy duty T bolts for easy maintenance
  • Corrosive resistant black powder coat carbon steel
  • O-ring stays in place with unique U-channel groove
  • Inlet & outlet 1/4” gauge taps

Technical Specifications

  • Vacuum Rating: medium vacuum service
  • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
  • Filter change out differential: 15-20"H2O (37‐50 mbar) over initial Δ P
  • Polyester: 99%+ removal efficiency standard to 5 micron
  • Paper: 99%+ removal efficiency standard to 2 micron



Options

All Sizes:

  • Vacuum gauge
  • Straight-through configurations
  • Various filter media
  • Various finishes and connection styles
  • Stainless steel



3/8" - 4" Connections: ​​

  • Stainless steel (select models)
  • ISO Flange (contact factory for specs, sizes & availability)
  • Mounting housing bands
  • Alternative top‐to‐canister fastening system for low pressure or pulsating systems



3" - 4" Connections: ​

  • Differential inlet/outlet gauge taps
  • Integrated baffle (3" - 4" connections)
  • Support brackets



3" - 12" Connections: ​

  • ISO Flange (contact factory for specs, sizes & availability)
  • Flange faces free of paint
  • Internal surfaces free of paint
  • Lifting lugs
  • Brackets for optional support legs
  • Nameplate bracket
