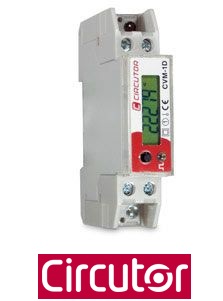

CVM-1D is a power analyzer for single-phase circuits up to 32 A. It has an LCD display with a rotating screen system, showing a total of 24 instantaneous, maximum and minimum
electrical variables. It has been designed in an enclosure with only 1 DIN module (18 mm), and the size of the analyzer allows it to be installed in any electrical panel. The unit has the Modbus/RTU (RS-485) protocol and is compatible with the energy management software PowerStudio.

Other features:

  • Six-digit LCD Display
  • RS-485 Modbus/RTU interface
  • Programmable impulse output and alarm
  • Metering in four quadrants
