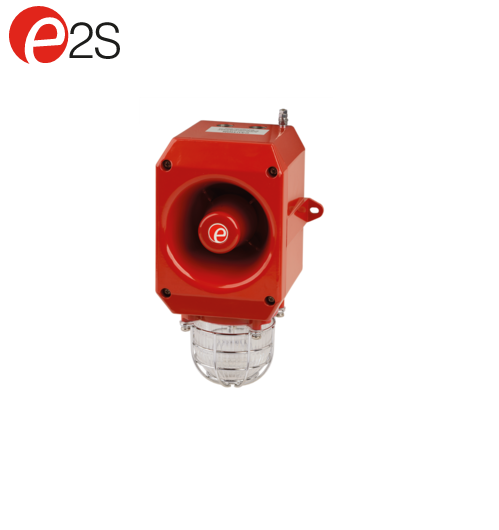

Model: D2xC1X05DC024AB1A1R/R Đèn còi Alarm Horn Sounder & Xenon E2S

Alarm Horn Sounder:



Maximum output:

116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]

Nominal output:

112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]

No. of tones:

64 (UKOOA / PFEER compliant)

No. of stages:

4

Volume control:

Adjustable -12dB(A) [Tone 2]

Effective range:

125m/410ft @ 1KHz

Stage switching:

DC units – Positive or Negative line.
AC units – common supply line

Xenon Strobe Beacon:



Energy:

5 Joules (5Ws)

Flash rate:

1Hz (60 fpm)

Peak Candela:

500,000 cd – calculated from energy (J)

Effective Intensity cd:

250 cd – calculated from energy (J)

Peak Candela:

33,410 cd – measured ref. to I.E.S.

Effective Intensity:

94.78 cd – measured ref. to I.E.S.

Lens colours:

Amber, Blue, Clear, Green, Magenta, Red & Yellow

Tube life:

Emissions are reduced to 70% after 8 million flashes

General:



Voltages DC:

24V dc [20-28Vdc]; 48V dc [38-58Vdc]

Voltages AC:

115V ac 50/60Hz; 230V ac 50/60Hz

Ingress protection:

EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13

Housing material:

Marine grade aluminium Al Si12 Cu

Colour:

Red (RAL3000), grey (RAL7038)

Cable entries:

2 x M20 x 1.5mm threaded gland entries

Terminals:

0.5 – 2.5mm² (20-14 AWG)

Grounding stud:

M5

Operating temp:

-40 to +70°C [-40° to +158°F] – Class I Div 2
-40 to +50°C [-40° to +122°F] – All other approvals
