DO9765T Delta Ohm,Máy phát có thể cấu hình pH hoặc mV

Nhà cung cấp: ANS Vietnam

Hãng sản xuất: Delta Ohm

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Thông tin sản phẩm
Thông số kỹ thuật

Đại lý Delta Ohm Vietnam,DO9765T Delta Ohm,Máy phát có thể cấu hình pH hoặc mV,Delta Ohm Vietnam,DO9765T Delta Ohm Vietnam,DO9765T – Máy phát có thể cấu hình pH hoặc mV,DO9765T , pH or mV Configurable Transmitters

Đại lý Delta Ohm Vietnam,DO9765T Delta Ohm,Máy phát có thể cấu hình pH hoặc mV,Delta Ohm Vietnam

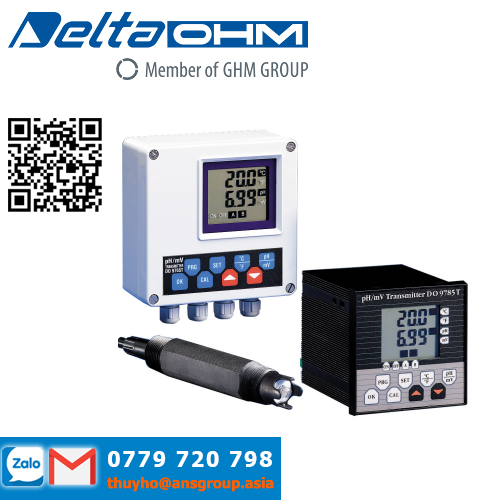

DO9765T – Máy phát có thể cấu hình pH hoặc mV

Máy phát pH hoặc mV chủ động hoặc thụ động hoàn toàn có thể cấu hình để sử dụng trên thực địa.

Bộ chuyển đổi pH DO9765T chuyển đổi đầu ra của điện cực pH, có bù nhiệt độ, thành tín hiệu 4÷20 mA .

Máy phát hoàn toàn có thể cấu hình và sử dụng trên thực địa.

Kích thước 122 x 120 x 57 mm với màn hình LCD kép (đo lường + nhiệt độ), đầu ra 4…20 mA cách điện với 2 dây thụ động hoặc 4 dây chủ động. Nguồn điện ở chế độ hoạt động 24 Vạc, theo yêu cầu 230 Vạc, ở chế độ thụ động 10…35 Vdc.

Mạch đầu vào điện cực pH được cách điện bằng điện đối với tín hiệu đầu ra 4÷20 mA.

Chỉ báo LCD cho phép xem giá trị tín hiệu quá trình và các thông số khác nhau.

Thiết kế chính xác và lựa chọn các thành phần làm cho thiết bị chính xác và đáng tin cậy cho một cuộc sống làm việc lâu dài.

Thiết bị hoạt động với điện cực pH hoặc Redox và đầu dò nhiệt độ (cảm biến Pt 100, 100 Ω ở 0°C).

Bảng dữliệu

LIST CODE ORDER

100% Italy Origin	Delta Ohm Vietnam	HD2105.1 pHmeter-Thermometer (not include Probe)
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	DO9765T pH or mV Configurable Transmitters
100% Italy Origin	Delta Ohm Vietnam	HD2402 Multisensor Photo-Radiometer Includes: DeltaLog13 software downloadable from Delta OHM website. Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.
100% Italy Origin	Delta Ohm Vietnam	HD2402 Multisensor Photo-Radiometer Includes: DeltaLog13 software downloadable from Delta OHM website. Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.
100% Italy Origin	Delta Ohm Vietnam	HD52.3D147 Multi-Output 2-AXIS Ultrasonic Anemometter
100% Italy Origin	Delta Ohm Vietnam	HD2402 Multisensor Photo-Radiometer Includes: DeltaLog13 software downloadable from Delta OHM website. Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2022 Sound level calibrator, class 2 according to IEC 60942:2003, suitable for ½” and ¼” (1) standard microphones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000 Hz, level 114dB. ISO 17025 calibration certificate according to IEC 60942 included. (1) HD2020AD4 adaptor for ¼” microphones not included.
100% Italy Origin	Delta Ohm Vietnam	HD2020AD4 Adapter for ¼” microphones. Can be used with HD2020 and HD2022 soundcalibrators
100% Italy Origin	Delta Ohm Vietnam	LPPYRA10 Spectrally Flat Class A (secondary standard) pyranometer according to ISO 9060:2018 supplied with shade disk, cartridge with silica-gel crystals, 2 spare sachets, levelling device and Calibration Report.
100% Italy Origin	Delta Ohm Vietnam	HD52.3D 2 Axis Ultrasonic Anemometer (Basic Version)
100% Italy Origin	Delta Ohm Vietnam	HD2402 Multisensor Photo-Radiometer Includes: DeltaLog13 software downloadable from Delta OHM website. Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit1 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Includes: -HD2010UC/A sound level meter class 1 and octave band analyzer. -UC52/1 pre polarized condenser microphone ½” -HDSAV windscreen -HD2010PNE2 preamplifier (HD2010PNE2W with opt. HD2010.OE) -HD2110USB cable (alternatively, on request, HD2110RS serial cable for RS232 connection) -Carrying case -Rechargeable batteries + SWD10 stabilized mains power supply -IEC 61672 and IEC 61260 manufacturer conformity declaration
100% Italy Origin	Delta Ohm Vietnam	HD2302.0 Portable luxmeter for measuring illuminance, luminance, PAR, irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or measurement of irradiance effective according to the UV action curve)
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2021T.CA Photometric Radiometric Transmitters
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2302.0 Portable luxmeter for measuring illuminance, luminance, PAR, irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or measurement of irradiance effective according to the UV action curve)
100% Italy Origin	Delta Ohm Vietnam	HD988TR1-I Configurable temperature transmitter with 4...20 mA output Measuring range -200°C +650°C, minimum range 25°C.
100% Italy Origin	Delta Ohm Vietnam	HD2303.0 Anemometer-Thermometer for air speed measurement
100% Italy Origin	Delta Ohm Vietnam	AP472S1 Vane probe with K type thermocouple
100% Italy Origin	Delta Ohm Vietnam	AP472S2 Vane probe ∅ 60 mm with handle ISO 17025 Calibration Certificate is included.
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2022 Class 2 sound level calibrator according to IEC 60942:2003. Suitable for ½” standard micro-phones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000Hz, sound pressure level 114dB. ISO 17025 Calibration Certificate is included.
100% Italy Origin	Delta Ohm	HD4807TV Wall mounting digital active temperature transmitter
100% Italy Origin	Delta Ohm	HD4807TC1.10 Wall mounting digital active temperature transmitter Output 4-20mA.
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit1
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit1 Includes: HD2010UC/A sound level meter class 1 and octave band analyzer, UC52/1 pre polarized condenser microphone ½” HDSAV windscreen, HD2010PNE2 preamplifier (HD2010PNE2W with opt. HD2010.OE) HD2110USB cable (alternatively, on request, HD2110RS serial cable for RS232 connection), Carrying case, IEC 61672 and IEC 61260 manufacturer conformity declaration
100% Italy Origin	Delta Ohm Vietnam	HD2128.1 Thermocouple thermometer for probes type K, J, T, R, N, S, B, E, two inputs.
100% Italy Origin	Delta Ohm Vietnam	HD32.8.8 8 inputs data logger for thermocouples
100% Italy Origin	Delta Ohm Vietnam	TP751 Thermocouple temperature probe
100% Italy Origin	Delta Ohm Vietnam	PW K thermocouple extension cable. Length 2m, miniature connector
100% Italy Origin	Delta Ohm Vietnam	CP22 Connecting cable USB 2.0 type A connector – type B connector
100% Italy Origin	Delta Ohm Vietnam	BAG32.2 Carrying case for instrument HD32.7 or HD32.8 and its accessories
100% Italy Origin	Delta Ohm Vietnam	SWD10 100-240Vac/12Vdc-1A stabilized mains power supply
100% Italy Origin	Delta Ohm Vietnam	HD52.3D 2-axes ultrasonic static anemometer sensor.
100% Italy Origin	Delta Ohm Vietnam	CP52.10 Connecting cable with 19-pole M23 female connector on one side, open wires on the other side. L = 10 m.
100% Italy Origin	Delta Ohm Vietnam	HD2402 Multisensor Photo-Radiometer
100% Italy Origin	Delta Ohm Vietnam	HD2402 Multisensor Photo-Radiometer Includes: DeltaLog13 software downloadable from Delta OHM website. Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.
100% Italy Origin	Delta Ohm Vietnam	HD2010UC.Kit1 Integrating portable sound level meter performing statistical analyses
100% Italy Origin	Delta Ohm Vietnam	HD2010.O2 Advanced Data Logger
100% Italy Origin	Delta Ohm Vietnam	HD2010.SFI Option IEC61672 Accredia accredited calibration for HD2010UC
100% Italy Origin	Delta Ohm Vietnam	VTRAP Tripod with 1550 mm maximum height
100% Italy Origin	Delta Ohm Vietnam	ST5484E-123-0020-00 Seismic Vibration Transmitter
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2022 Class 2 sound level calibrator according to IEC 60942:2003. Suitable for ½” standard micro-phones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000Hz, sound pressure level 114dB. ISO 17025 Calibration Certificate is included.
100% Italy Origin	Delta Ohm Vietnam	HD2010UC/A.Kit2 HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer Including Accessories and carrying case
100% Italy Origin	Delta Ohm Vietnam	HD2022 Class 2 sound level calibrator according to IEC 60942:2003. Suitable for ½” standard micro-phones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000Hz, sound pressure level 114dB. ISO 17025 Calibration Certificate is included.
100% Italy Origin	Delta Ohm Vietnam	HD2303.0 Anemometer-Thermometer for air speed measurement
100% Italy Origin	Delta Ohm Vietnam	AP472S1 Vane probe with K type thermocouple
100% Italy Origin	Delta Ohm Vietnam	AP472S2 Vane probe ∅ 60 mm with handle ISO 17025 Calibration Certificate is included.
