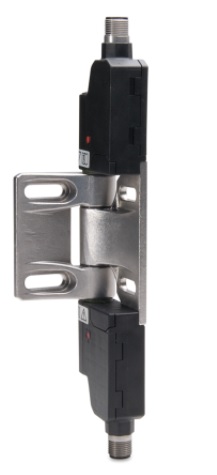

Double Safety Hinge Switch Type SHS3 , Bernstein Viet Nam

*

Thanks to its two switching elements on one hinge, the BG (occupational health and safety)-approved variant of the SHS3 provides two independently adjustable switching points. This arrangement not only makes it possible to monitor the opening of a safety guard but also the direction of opening of swing doors. Of course, you have also all standard hinge switch advantages.

*

• Flexibility and safety for hinged protective equipment
• Protection class IP 67
• Freely and repeatedly adjustable switching point
• Switching point freely adjustable by user over a range of 270°
• Uncomplicated re-adjustment even of set switching point by ±1.5° thanks to integrated fine adjustment system
• Slots for mounting on sections and welded structures
• Right and left hinged systems possible for optimum cable routing
• Mounting between sections while maintaining the required finger guard gap

*

• 2 positive opening safety contacts with additional normally-open signalling contact
• The load-bearing hinge is made from stainless steel while the switching system is housed in a high quality plastic enclosure

---
