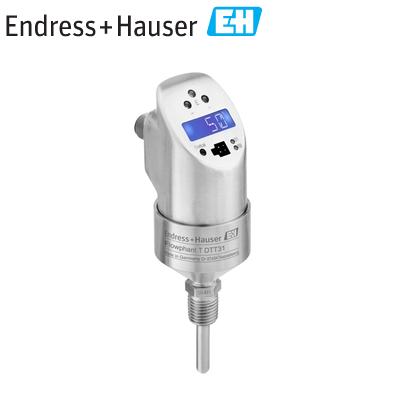

Cảm biến lưu lượng  DTT31-A3A111DE2AAB  Endress Hauser

  • Measuring principle

    Thermal

  • Product headline

    Flow switch for liquid applications, intelligent / programmable; insertion style

  • Nominal diameter range

    DN 25...1000
    1"...40"

  • Max. measurement error

    2% - 10% (per measurement range)

  • Max. process pressure

    100 bar (1.740 psi)

  • Medium temperature range

    -20...+85°C
    (-4...+185°F)
    CIP-able to 130°C / 266°F

  • Degree of protection

    IP66

  • Display/Operation

    LED
    LCD-Display

  • Outputs

    1 x PNP switchable output + 1 x 4...20 mA analog output
