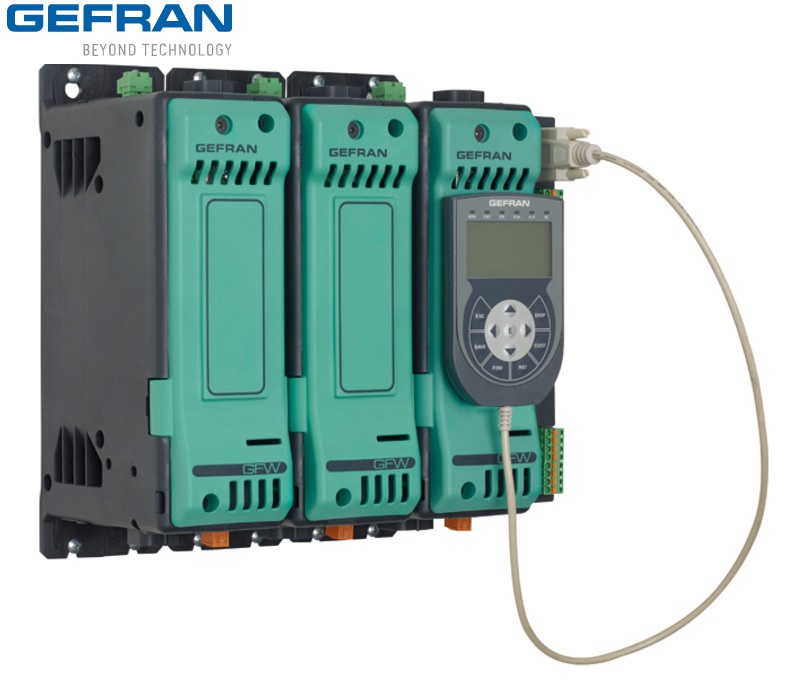

Electric power controllers suitable for controlling high and low heat coefficient resistive loads, SWIR lamps, single/two/three-phase transformers and current up to 600 Ampere.

  • Current ranges: from 40 A to 600 A
  • Voltage ranges: 480 Vac, 600 Vac or 690 Vac
  • Firing mode configurable in “Zero crossing” (Fixed Cycle, Burst Firing, Half Single Cycle) or “Phase angle”
  • Analogue inputs that can be configured for the control: Volt, mA, potentiometer, and digital (PWM)
  • Built-in fuse (opt)
  • Interrupted total and partial load alarm (opt)
  • Current limit (opt)
  • Feedback V, V2, I, I2, P (opt)
  • Thermocouple input for diagnostics and alarm (opt for ranges 100 A,200 A,250 A and 300 A)
  • Inputs for three external TAs (400 A, 500 A, 600 A)
  • Three configurable retransmission analogue outputs (400 A, 500 A, 600 A)
  • Configurations: Single-phase, two-phase, and three-phase
  • Fieldbus (opt): Profinet, Profibus DP, Modbus-TCP, Ethernet IP, EtherCAT, CanOpen, Modbus RTU
  • Keypad for parameter settings/reading (opt)
  • PC configuration
  • CE, UL
  • CSA (100 A, 200 A, 250 A, and 300 A)
  • SCCR UL 508 100KA
