Description

Zero-voltage switching. Current range: 25A to 55A

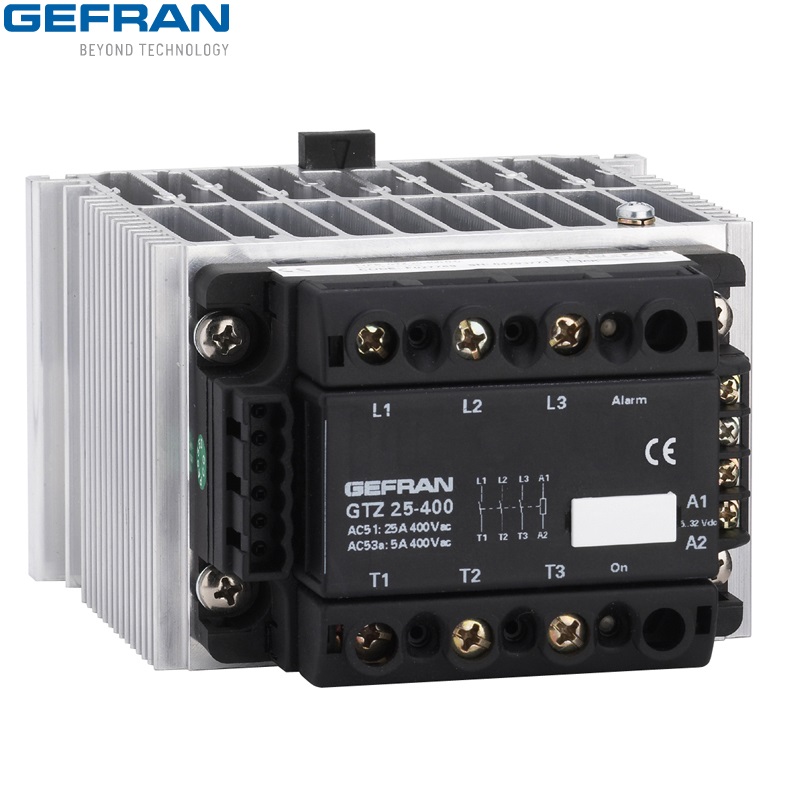

  • 3-phase alternating current solid state relay with integrated hestsink
  • Zero crossing switching
  • 3-phase nominal current 3x25/40/55A
  • Nominal voltage up to 600VCArms Control range:5...32Vdc
  • Optoinsulation (input/output) 4000Vrms
  • Integrated overvoltage suppressor
  • Non-repetitive voltage up to 1200Vp
  • Component selection to operate at max. declared current with ≤ 40°C temperature
  • DIN bar mounting with fast clip-on
  • In Conformity with EN60947-4-3 and UL508
