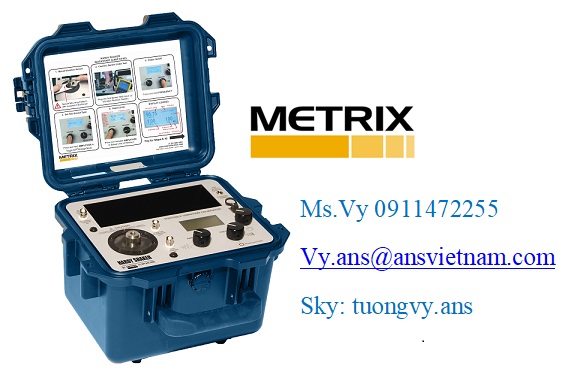

Model: HI-903  Metrix Vietnam

This is our top of the line Hardy Shaker.

SHAKER HI-903 Metrix provides the ability to set the amplitude and change the frequency range without the amplitude changing.  This automation makes conducting vibration tests easier.  Tests can be conducted on multiple vibration transducers, and then the saved data can be transferred via USB Flash Drive to be displayed in an automated and customizable report using an Excel template on your computer.

In manual mode, the vibration test level and test frequency can be set from 7 Hz to 10,000 Hz. The high accuracy instrument can display the vibration level in terms of g’s peak, velocity peak (in/sec or mm/s) or displacement peak-to-peak (mils or µm).

SHAKER HI-903 can support payloads up to 800 grams (see frequency limits in the manual).  A built-in display reads the output sensitivity, which can be stored in memory. Complete testing sequences and data can be stored in memory for each tested sensor, the unit logs the data on the spot or stores it for later use.  For testing of heavy transducers or at high frequencies, the SHAKER HI-903 Metrix automatically corrects the sensitivity calculation for the effects of transducer mass loading. A built-in self-test program checks for accuracy of all calculations. The SHAKER HI-903 Metrix has a built-in battery charger that can operate on 120 or 240 VAC. The unit comes in a rugged Pelican case.

Product Approx. Weight: 8.2 kg (18 lbs)

SHAKER HI-903 METRIX VIETNAM
