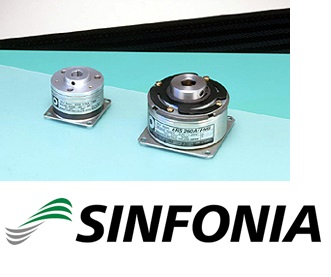

JC-0.6 Brake Sinfonia Vietnam ANSdanang

<JC-0.6>
Type JC-0.6
Static friction torque Nm 6
Rated voltage DC-V 24
Power consumption W(at75°C) 8
Weight kg 0.8
Unit:mm





Diameter direction
A 76
A1 51
B 70.3
D1 28
E 14
F 4.5
G 46
H 39.5
Shaft direction
L 47
M 29
N 1.6
O 1
P 3
Q 23
R 21
S 6.5
g 0.4
Mounting
SJ
Tap P.C.D
M4 40
Shaft hole
d 12
b 4
t
13.8 +0.1
0
Power box
DMP-20/24A
Controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
