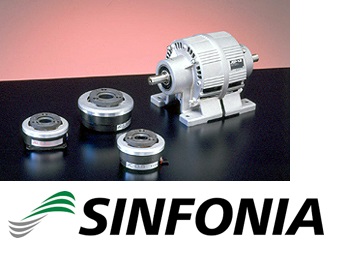

JC-10 Brake Sinfonia Vietnam ANSdanang

<JC-10>
Type JC-10
Static friction torque Nm 100
Rated voltage DC-V 24
Power consumption W(at75°C) 33
Weight kg 8.7
Unit:mm





Diameter direction
A 186
A1 112
B 175.7
D1 62
E 24
F 8.5
G 108
H 95
Shaft direction
L 87.5
M 52
N 3.2
O 1
P 4
Q 45.5
R 38
S 11
g 0.5
Mounting
SJ
Tap P.C.D
M10 90
Shaft hole
d 30
b 10
t
33.3 +0.2
0
Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/4HB
