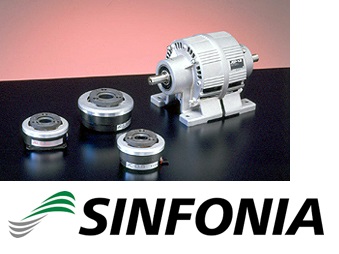

<JEP-20>
Type JEP-20
Clutch Brake
Built-In clutch/brake JCC-20F JB-20
Static friction torque Nm 200
Rated voltage DC-V 24
Power consumption W(at75℃) 40 40
Weight kg 60
(Note) The specification of built in clutch/brake is dedicated to JEP.
Unit:mm

Diameter direction
A 290
B 120
C 160
D 300
E 70
F 155
G 20
H 310
I 352
Shaft direction
L 566
M 300
N 125
O 80
P 283
R 200
Z 14
Shaft edge
Q 80
QK 68
d 40
b 12
h 8
t

5

Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/HB
