PRODUCT MODEL
|

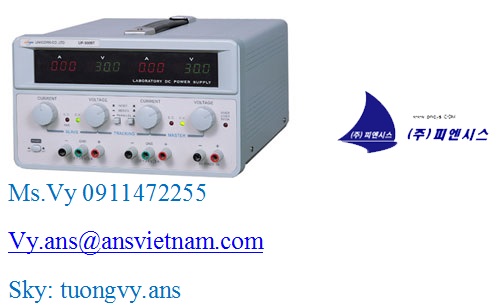

UP-3005T
|
||
|
OUTPUT VOLTAGE(CV)
|
0~30V DUAL , 5V(FIXED)
|
||
|
OUTPUT CURRENT(CC)
|
0~5A DUAL , 3A(FIXED)
|
||
|
OPERATION MODE
|
INDEPENDENT
|
TWO INDEPENDENT OUTPUTS AND 5V FIXED OUTPUT
|
|
|
SERIES
|
ONE 0~60V,0~5A OUTPUT AND 5V FIXED OUTPUT
|
||
|
PARALLEL
|
ONE 0~30V,0~10A OUTPUT AND 3A FIXED OUTPUT
|
||
|
5V FIXED OUTPUT
|
REGULATION
|
LINE REGULATION : LESS THAN 5mV
|
|
|
LOAD REGULATION : LESS THAN 10mV
|
|||
|
RIPPLE & NOISE
|
≤2 mV rms.
|
||
|
VOLTAGE ACCURACY
|
5V ± 0.25V
|
||
|
OUTPUT CURRENT
|
3A
|
||
|
TRACKING OPERATION
|
TRACKING ERROR
|
LESS THAN 0.5% + 10mA OF THE MASTER
|
|
|
SERIES LOAD
REGULATION |
LESS THAN 30mA
|
||
|
PARALLEL LOAD
REGULATION |
0.01%+3 ㎷ (Rating Current ≤ 3A)
|
||
|
0.02%+5 ㎷ (Rating Current > 3A)
|
|||
|
RIPPLE REJECTION
|
VOLTAGE
|
≤1 mV rms. (5Hz-1MHz)
|
≤2 mV rms. (5Hz-1MHz)
|
|
LINE REGULATION
|
VOLTAGE
|
0.01%+3 ㎷
|
0.01%+3 ㎷
|
|
LOAD REGULATION
|
VOLTAGE
|
0.01%+3 ㎷ (Rating Current ≤ 3A)
|
0.02%+5 ㎷ (Rating Current > 3A)
|
|
VOLTAGE RESOLUTION
|
0.1V
|
0.1V
|
|
|
CURRENT RESOLUTION
|
0.01A
|
0.01A
|
|
|
TRANSIENT RECOVERY TIME
|
100 ㎲ (50%LOAD CHARGE,MINIMUM LOAD 0.5A)
|
||
|
DISPLAYER
|
VOLTAGE
|
3 ½ DIGITAL AUTO RANGE DIGITAL DISPLAY
|
|
|
CURRENT
|
3 ½ DIGITAL AUTO RANGE DIGITAL DISPLAY
|
||
|
PROTECTION
|
OVER VOLTAGE
|
FULL SCALE OF DC OUTPUT VOLTAGE + 9%
|
|
|
OVER CURRENT
|
FULL SCALE OF DC OUTPUT CURRENT + 9%
|
||
|
TEMPERATURE
|
ONLY HEAT SINK 85℃
|
||
|
OPERATING ENVIRONMENT
|
0~40 ℃,80%R.H.
|
||
|
AC POWER SOURCE
|
AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)
|
||
|
ACCESSORIES
|
INPUT POWER CORD, MANUAL , OUTPUT CABLE
|
||
|
WEIGHT(kg)
|
8 kg
|
||
|
DIMENSION(W*H*D ㎜)
|
345*140*245
|
||
