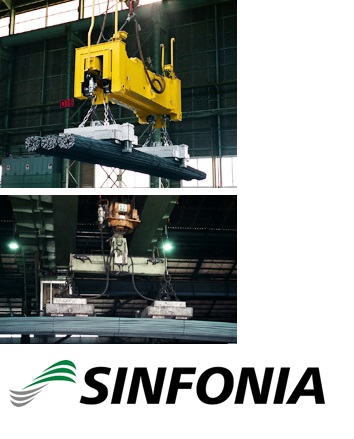

LMDP Series
■For nomal temperature steel bar handling.
| Type | LMDP- 11590 HAS |
LMDP- 14087 HAS |
LMDP- 70100 HAS |
LMDP- 10090 HAS |
LMDP- 11090 HAS |
||
|---|---|---|---|---|---|---|---|
| Dimensions | A | mm | 1150 | 1400 | 700 | 1000 | 1100 |
| B | 890 | 870 | 1000 | 900 | 900 | ||
| C | 800 | 900 | 800 | 800 | 900 | ||
| D | 300 | 400 | 300 | 300 | 300 | ||
| E |
90 |
90 | 90 | 90 | 90 | ||
| F | 160 | 160 | 160 | 160 | 160 | ||
| G | 28 | 28 | 28 | 28 | 28 | ||
| Weight | Approx. kg |
1450 | 1700 | 1250 | 1500 | 1350 | |
| Current (when cold) |
Approx. A |
32 | 41 | 20 | 30 | 30 | |
| Power consumption (when cold) |
Approx. kW |
7 | 9 | 4.5 | 6.5 | 6.5 | |
| Lifting capacity |
Temperature | 300℃ | 300℃ | 350℃ | 350℃ | 200℃ | |
| Diameter of steel bar |
16～ 51mm |
16～ 51mm |
10～ 32mm |
10～ 32mm |
9～ 32mm |
||
| Diameter of steel bar bundle |
300φmm | 300φmm | 300φmm | 300φmm | 300φmm | ||
| Length | 3.5～13m | 3.5～13m | 3.5～7.5m | 3.5～7.5m | 3.5～12m | ||
| Weight of a bundle |
1.5ton | 1.5ton | 1.9ton | 1.9ton | 2.9ton | ||
| Capability of lifting bundle |
3 bundles per 2 lifting magnet |
4 bundles per 2 lifting magnet |
2 bundles per 2 lifting magnet |
3 bundles per 2 lifting magnet |
3 bundles per 3 lifting magnet |
||
