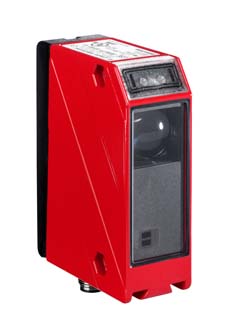

LSE 96M/P-1040-42 - Throughbeam photoelectric sensor receiver

Xuất sứ: GERMANY

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: LEUZE VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

  • Basic data
    • Series96
    • Operating principleThroughbeam principle
    • Device typeReceiver
  • Special design
    • Special designWarning output, Time function
  • Electrical data
    • Performance data
      • Supply voltage UB10 ... 30 V, DC
      • Residual ripple0 ... 15 %, From UB
      • Open-circuit current0 ... 50 mA
    • Outputs
      • Number of digital switching outputs2 Piece(s)
      • Switching output 1
        • Switching elementTransistor, PNP
        • Switching principleLight switching
      • Switching output 2
        • Switching elementTransistor, PNP
        • Switching principleLight switching
        • FunctionWarning output
  • Timing
    • Switching frequency500 Hz
  • Connection
    • Connection 1
      • Type of connectionConnector
      • Thread sizeM12
      • MaterialMetal
      • No. of pins4 -pin
  • Mechanical data
    • Dimension (W x H x L)30 mm x 90 mm x 70 mm
    • Housing materialMetal, Zinc
    • Lens cover materialGlass
    • Net weight380 g
    • Compatibility of materialsECOLAB
  • Operation and display
    • Operational controls270° potentiometer
  • Environmental data
    • Ambient temperature, operation-40 ... 55 °C
  • Certifications
    • Degree of protectionIP 67
    • Protection classII
    • Certificationsc UL US
    • Standards appliedIEC 60947-5-2
  • Classification
    • Customs tariff number85365019
    • eCl@ss 8.027270901
    • eCl@ss 9.027270901
    • ETIM 5.0EC002716
    • ETIM 6.0EC002716
