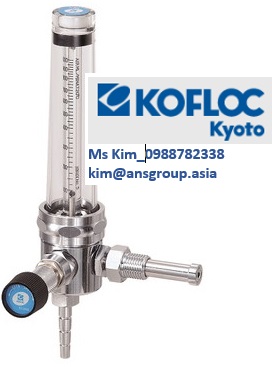

Lưu lượng kế chính xác_Model RK4400 series
Xuất sứ: JAPAN
Nhà cung cấp: ANS- ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: KOFLOC VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. Bảo* Đặt điểm
• The precision needle valve Model 2412 is used for easy, fine adjustment of flow.
• The flow meter tube made by high-precision molding ensures excellent stability and repeatability even if it is inclined.
• The material, cleaning method, and assembly are carefully designed for the use of high-purity, high-price standard gases so as to eliminate waste losses, reduce absorption of constituent gas and minimize generation of other types of gas from the parts.
• For cylinder regulators
• For line regulators
* Thông số
| Flow range | Standard 1-10ML/MIN, 5-50ML/MIN 10-100ML/MIN, 50-500ML/MIN 0.1-1L/MIN, 0.5-5L/MIN 1-10L/MIN, 1.5-15L/MIN 2-20L/MIN |
| Object gas | Air,N2,O2,H2,He,Ar,CO2 For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used. (Refer to page 56.) |
| Accuracy | Within FS ±2% |
| Repeatability | Within ±0.5% of reading |
| Proof pressure | 0.3MPa |
| Temperature resistance | 40℃ (MAX) |
| Scale | Direct reading or mm scale (Refer to page 57.) |
| Needle valve | Precision needle valve Model 2412 equivalent |
| Material of exhaust gas section |
(B) Pyrex, glass, SUS316, Brass, NBR, acrylic resin, fluorocarbon resin, glass (SS) Pyrex, glass, SUS316, FKM, fluorocarbon resin, SUS304,glass |
| End connection | Inlet: PF 1/4 thread Outlet: Rc 1/4 (φ7 hose nipple) standard accessory |
