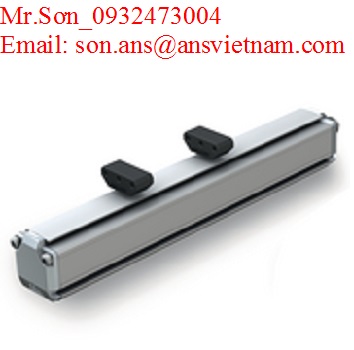

Mechanical attributes

Close

Nominal stroke 100 mm
Ambient temperature Ta max. 85 °C
Ambient temperature Ta min. -40 °C
Cable/connector out Axial
Connector type M16
EN55016-2-3 (emission) Industrial sector
EN60068-2-27 (shock) 100 g / 6 ms
EN60068-2-29 (contin. shock) 100 g / 2 ms
EN60068-2-6 (vibration) 12 g, 10…2000 Hz
EN60068-2-64 (noise) 5 g, 10…2000 Hz
EN61000-4-2 (ESD) Severity Level 3
EN61000-4-3 (RFI) Severity Level 3
EN61000-4-4 (Burst) Severity Level 3
EN61000-4-5 (Surge) Severity Level 2
EN61000-4-6 (HF fields) Severity Level 3
EN61000-4-8 (magnetic fields) Severity Level 4
Housing material Anodized aluminum
Mounting type Mounting clamps
Nominal stroke 100 mm
Null point 73.0 mm
Number of poles 8
Profile height 36.8 mm
Relative humidity < 90 %, non-condensing
Repeat accuracy ≤ ±0.2 µA
Resolution ≤ 0.2 µA
Sampling rate (length-depend.) 1 kHz, standard
Storage temperature max. 100 °C
Storage temperature min. -40 °C
Style Series Profile
TK, typ. (at 50 % of 500 mm) ≤ 35 ppm/K
Version Type P
