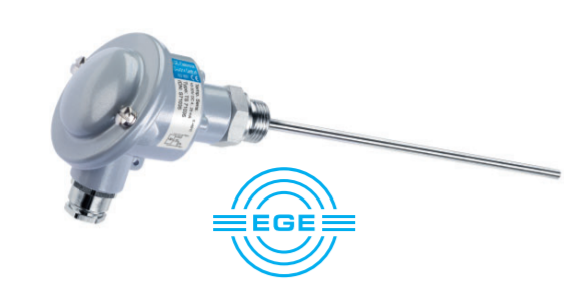

Monitor temperatures

Xuất sứ: GERMANY

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: EGE ELEKTRONIK VIETNAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

*) Đặt điểm

Supply voltage                     [V]                                12...30 DC

ID-No.                                                                            P.....

Type-sensor length L       [mm]                         TGBA 050 GI-Lxxx

Temperature range                                             min. – 50...+375

medium                               [°C]                           max. – 25...+400

 between min. and max. has to be minimum 25 °C

Ambient temperature          [°C]                                – 25...+70

Output                               [mA]                                    4...20

Turn on delay              [s]                                approx. 4 (output < 4 mA)

Protection        [EN 60529]      housing: IP 67 / sensor tip: IP 68 / IP 69K

Housing material                                                Aluminium, form B terminal head

Material sensor probe                                             AISI 316 Ti

Sealing material                               NBR, AFM 34, different material on request
