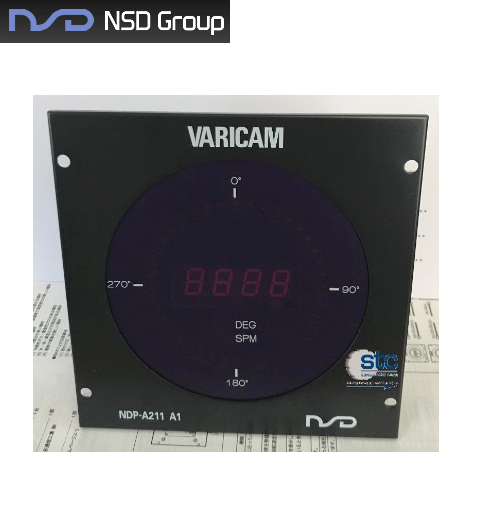

Model: NDP-A211A1/ Màn Hình Hiển Thị Tín Hiệu (External Display Unit)/ NSD Group

Specification

General specification

Item

Specification

Converter model

NDP-A211A1

NDP-A221A1

Power supply voltage

24VDC

Permissible power voltage range

21.6 ~ 30VDC

Power consumption

5W or less

Ambient operating temperature

0 ~ +55℃

Mass

NDP-A211A1 : Approx. 0.7kg

NDP-A221A1 : Approx. 0.6kg

Performance Specification

Item

Specification

Converter model

NDP-A211A1

NDP-A221A1

Displayed items

Roulette display of current position, digital of current position and rotational speed

Current position value display unit

Roulette display of current position : 9°,Digital display of current position : 1°

Rotational speed display range

2500spm(r/min)

Speed display sampling time

1s

Max. cable length

100m

Input signals

Item

Specification

Signal name

Current position value input 10 points

Timing pulse input 1 point

Input circuit

DC input, photo-coupler isolation

Rated input voltage

24VDC

Rated input current

5mA

8mA
