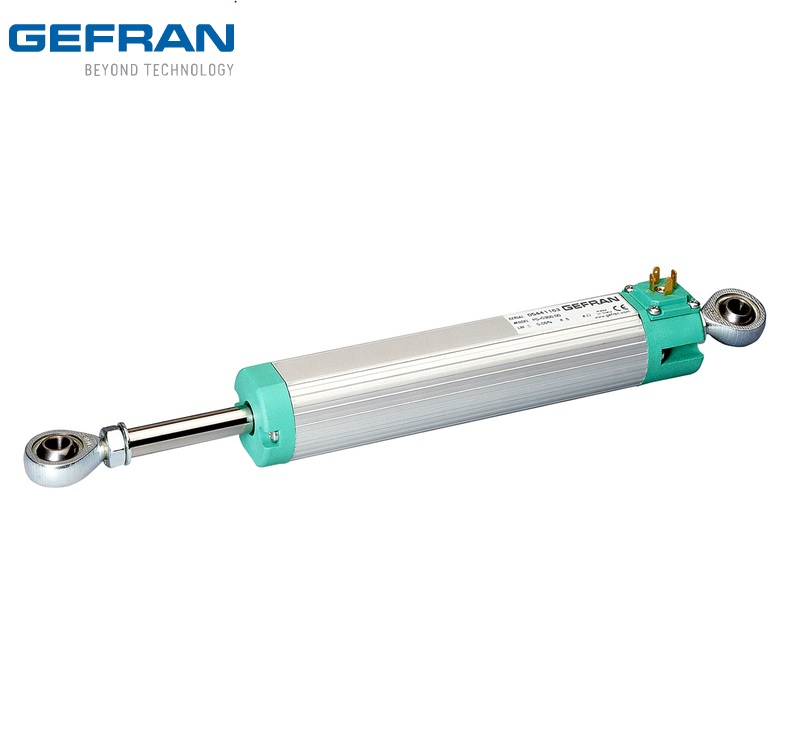

Description

  • 50 to 750 mm stroke
  • Mechanical fixing and selfaligning linkage using 2 ball-joints
  • Maximum angular movement up to ± 30°
  • Independent linearity ± 0.05%
  • Repetibility 0.01 mm
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed up to 5 m/s
  • Working temperature: -30...+100°C
  • Electrical connections:
  • PC H 3-pole connector
  • PC M 4-pole connector to standard DIN43650-ISO4400
  • PC B 5-pole connector (DIN43322)
  • PC F 3-pole screened cable (1 m length)
  • Life duration: > 25x106 meters or > 100x106 operations, whichever is the smaller (within C.E.U.)
  • Grade of protection IP65
