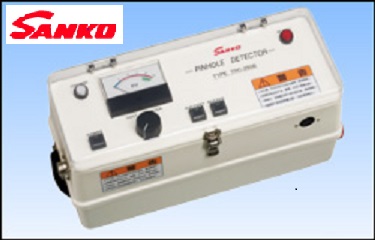

Pinhole and Holiday Detectors TRC-250A/250B, TRC-70A/70B

Xuất sứ: JAPAN

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: SANKO DENSHI VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

* Thông số:

Model

TRC-250A

TRC-250B

TRC-70A

TRC-70B

Type

Low frequency, High voltage, Pulse discharge type

Output voltage

5-25kV (Peak value)

1-7kV (Peak value)

Applicable thickness

1mm and over

1mm or less

Power source

Built-in Ni-MH battery with battery check function

Recharging Power source

AC 100-240V, 50/60Hz, 30-20VA

Operating hours

Approx. 6 hours (Max. output voltage)

Approx. 10.5 hours (Max. output voltage)

Alarm method

Lamps

Lamps & Buzzer

Lamps

Lamps & Buzzer

Operating temperature

0～40℃(Non-condensing)

Probe（Standard attachment)

ABS-made flexible probe (handle φ32, head φ25, length: Min.540mm-Max.870mm)
with brush holder, cord (5m for high voltage)

Standard accessories

Probe case, Grounding cord 5m, Safety switch cord 5m, Recharging cord 2m,
Flat type brush electrode (30x300mm brass) 2pcs, approx. 2.2kg

Dimensions

370(W) x 190(H) x 150(D)mm
