Description

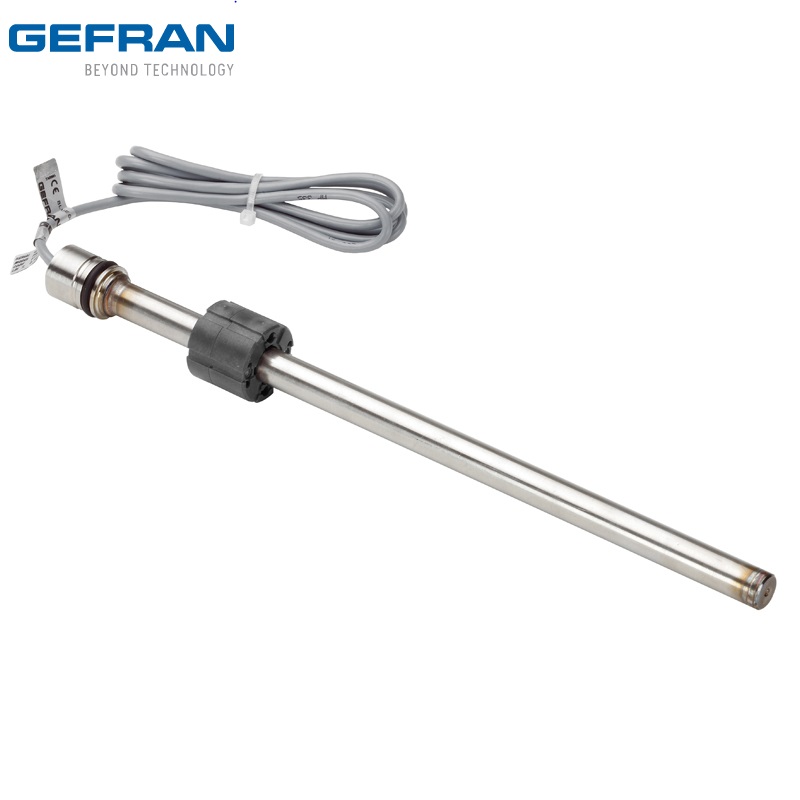

  • The PMI-SLE transducer, is the amplified version of the PMI-SL, a product designed for all inside cylinder applications which require a smaller transducer (the rod diameter is only 12,7 mm).
  • The PMI Slim offers the same robustness as the PMI-12: AISI 316 stainless steel body, IP67 protection level, and pressure resistance up to 250 bar (400 bar peak)
  • Available with flanged or threaded heads, to guarantee mechanical compatibility with all main cylinder types
  • Patented solution
  • Ideal for applications inside hydraulic cylinders, demanding simple solutions which guarantee measurement repeatability
