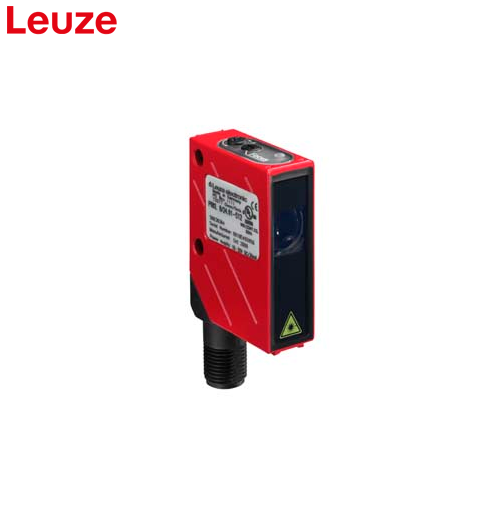

Model: PRKL 8/24.91 Cảm biến quang Photoelectric sensor Leuze

Features:

Series 8

Operating principle Reflection principle

Special versionAutocollimation

Operating range 0 ... 19 m

Operating range limit 0 ... 21 m

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Switching frequency 2,800 Hz

Response time 0.18 ms

Dimension (W x H x L) 15 mm x 48 mm x 38 mm

Housing material Metal, Zinc

Lens cover material Glass

Net weight 70 g

Type of fastening Through-hole mounting, Dovetail grooves, Mounting thread, Via optional mounting device

Compatibility of materials ECOLAB
