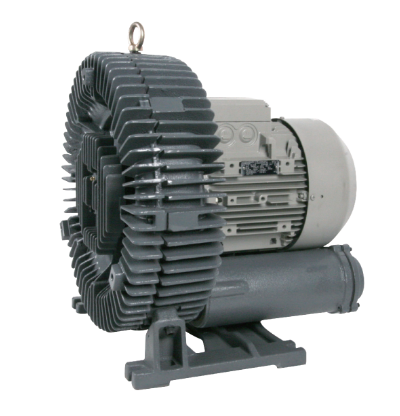

 Specifications IHB-100
50Hz 60Hz
Phase 3
Motor HP 0.5 0.7
kW 0.4 0.5
Sound Level dB(A) 60 64
Current(A) 220V 2.5 2.4
380V 1.4 1.4
Rated Pressure mmaq 1300 1300
  51.18 51.18
psig 1.85 1.85
Rated Vacuum mmaq 1200 1200
  47.24 47.24
psig 1.71 1.71
Max Air Flow ㎥/min 1.3 1.4
cfm 45.9 49.4
Material Impeller ALDC12.1
Casing ALDC12.1
Bearing Front/Rear 6203zz/6203zz
Weight 12.2
Starting Class G
Insulation Class F
