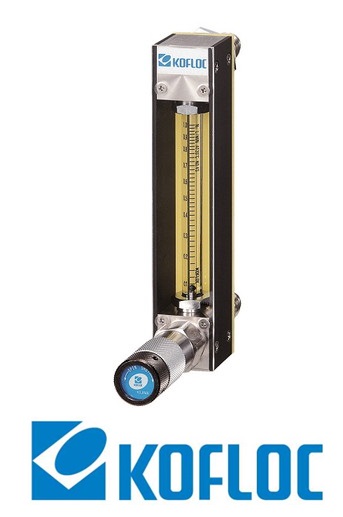

RK1500  Thiết bị đo lưu lượng và điều khiển KoflocVietnam ANSdanang



Gases Liquids
Fluids Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding whether
conversion conditions or calibration by actual gas is to be used.
* Optional: Scale indicating two types of fluids
Standard fluid: Water
For other liquids, consultation is necessary regarding whether
conversion conditions or calibration by actual liquid is to be used.
Flow range 0.5-5 ML/MIN to 3-30 L/MIN (See the Capacity Table below.)
* Optional: 0.5-3 ML/MIN
0.5-5 ML/MIN to 0.1-1 L/MIN (See the Capacity Table below.)
* Optional: 0.5-3 ML/MIN
Accuracy FS±2% (Measurement point)
* Optional: FS±1% (Measurement point)
FS±2% (Measurement point)
Proof
pressure
1.0 MPa for 100 ML/MIN or less
0.7 MPa for 5 L/MIN or less
0.5 MPa for 10 L/MIN or more
1.0 MPa for 5 ML/MIN or less
0.7 MPa for 150 ML/MIN or less
0.5 MPa for 200 ML/MIN or more
Available
scale
10:1 * Optional: 20:1


Materials SS
Body block SUS316
Tapered tube Pyrex®, glass
Packing FKM, fluorocarbon resin
Float Pyrex, SUS 316, glass
Protective
cover
Acrylic resin
Temperature
 resistance
MAX60℃
