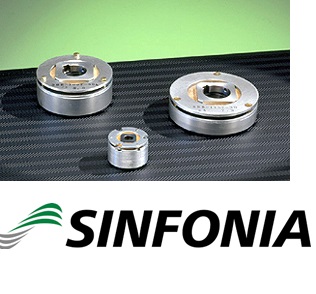

SBR-32-0003EZ Brake Sinfonia Vietnam ANSdanang

<SBR-32-0003EZ>
Type SBR-32-0003EZ
Static friction torque Nm 0.35
Rated voltage DC-V 24
Power consumption W (at20°C) 6.3
Weight kg 0.14
Unit:mm





Response Characteristics

Type/SBR- 32-0003EZ
Armature pull-in time    ta (ms) 35
Armature release time    tar (ms) 20



Allowable workload / Max speed / Inertia J

Type/SBR- 32-0003EZ
Allowable workload (J) Per single time 27
Total workload 1.0×104
Max speed (r/min) 6000
J (kgm2) 3.7×10-7
Number of stops Normal holding (0r/min) 2000000
Emergency braking 200
Heat resistance class H
Initial armature pull-in voltage (at20°C) Less than DC15
Initial armature release voltage (at20°C) More than DC1V
Mounting direction Free
