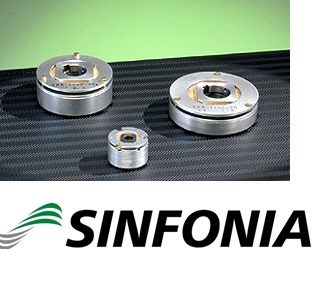

SBS-170 Brake Sinfonia Vietnam ANSdanang

<SBS-170>
Type SBS-170
-4D -8D
Static friction torque Nm 60 120
Rated voltage DC-V 24
Power consumption W(at75°C) 38
Weight kg 15





  1. 2D and 6D types are custom made.
  2. A new clutch and brake may not have the rated torque at first.
Unit:mm
Build-to-order product



Diameter direction
A 170
A1 90
C 170
C1 56
D1 120
Shaft direction
K 8
L 110
P 34
Q 1
R 75
Mounting
CJ P.C.D 145
Screw M10×15
Shaft hole
d 40
b 10
t 43.5
Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/4HB
