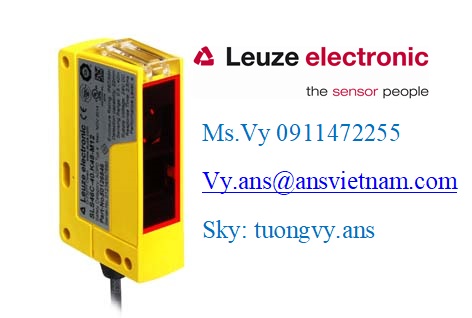

- Series46C
-
Functions
- FunctionsActivation input
-
Characteristic parameters
- Type4, IEC/EN 61496
- MTTFd900 years, EN ISO 13849-1
- Mission time20 years, EN ISO 13849-1
-
Optical data
- Operating range0.25 ... 40 m
- Operating range limit0.25 ... 48 m
- Light sourceLED, Red
- LED light wavelength630 nm
- Transmitted-signal shapePulsed
- LED protection class1
- Opening angle, max.-2.5 ... 2.5 °
-
Electrical data
-
Performance data
- Supply voltage24 V, DC, -20 ... 20 %, Incl. residual ripple
- Residual ripple10 %, From UB
- Open-circuit current0 ... 40 mA
-
Inputs
- Number of activation inputs1 Piece(s)
-
Activation inputs
- Voltage typeDC
- Switching voltagehigh: ≥8V, low: ≤1.5V
- Switching voltage high, min.8 V
- Switching voltage low, max.1.5 V
- Activation/disable delay1 ms
- Input resistance10,000 Ω, -30 ... 30 %
-
Activation input 1
- Active switching stateHigh
-
-
Timing
- Switching frequency250 Hz
- Response time2.5 ms
- Readiness delay300 ms
-
Connection
- Number of connections1 Piece(s)
-
Connection 1
- Type of connectionCable
- FunctionVoltage supply, Signal IN
- Cable length2,000 mm
- Sheathing materialPUR
- Number of conductors4 -wire
- Wire cross section0.21 mm²
-
Mechanical data
- DesignCubic
- Dimension (W x H x L)20.5 mm x 76.3 mm x 44 mm
- Housing materialPlastic, PC-PBT
- Lens cover materialPlastic / PMMA
- Net weight100 g
- Housing colorYellow
- Type of fasteningThrough-hole mounting
- Compatibility of materialsECOLAB
-
Operation and display
- Type of displayLED
- Number of LEDs2 Piece(s)
-
Environmental data
- Ambient temperature, operation-30 ... 60 °C
- Ambient temperature, storage-30 ... 70 °C
-
Certifications
- Degree of protectionIP 67, IP 69K
- Protection classIII, Rating voltage 50 V
- Certificationsc UL US, c TÜV NRTL US
- Standards appliedIEC 60947-5-2, IEC/EN 61496
-
Classification
- Customs tariff number85365019
- eCl@ss 8.027272701
- eCl@ss 9.027272701
- ETIM 5.0EC001831
-
