SP-3300D Electromagnetic Coating Thickness Meter Máy đo độ dày lớp phủ Sanko Electronic

Xuất sứ: Japan

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: SANKO DENSHI VIET NAM

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

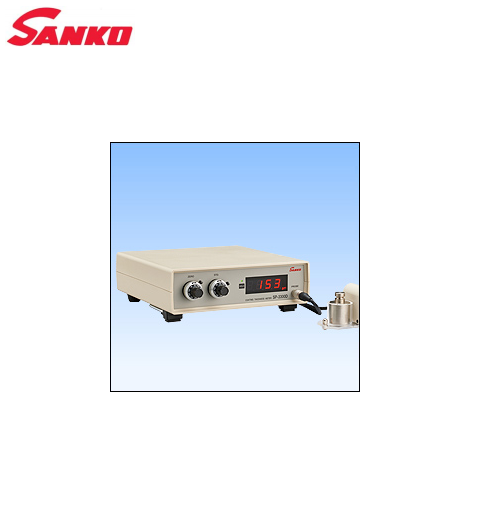

ELECTROMAGNETIC COATING THICKNESS METER
SP-3300D
Complete-constant-pressure type probe and high reappearance-ability even in measurements of elastic coating
● Digital Coating Thickness Meter for high quality, high precision screen.
As the probe has a flat level on the tip, that makes it possible to add weights on it leaving your hands free from handling, it leads to reality of a complete constant pressure. And it also make possible to obtain high reappearance-ability of measurements of various kinds of screens, resists, other elastic films and non-dry films as well.
Applications
● Film/screen-resist/ elastic film / thickness of seaweeds and the like
Specifications
Measuring range  :   0～300μm ( Special order: 0～500μm)
Resolution  :   1 μm
Accuracy  :   ±1μm to a flat level or ±2% the indicated value
Display method  :   LED Digital, with a display hold function
Probe  :   3 contact points with 2 electrodes and a stabilized leg, weighting- complete- constant pressure type, 42×50×62mm, pole diameter:φ8, pole-to-pole distance: 16mm
Power  :   AC100V～240V,Exclusive AC adapter
Temperature  :   0～40 ℃（non-condensing）
Weight and Dimensions  :   190(W)×54(H)×200(D) mm, 1kg
Accessories  :   Thickness standards, Zero plates, weights (balancer)
