Stator with IP67 connector M17/9(m)_PS01-23x80-R

Xuất sứ: USA

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: LINMOT VIETNAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

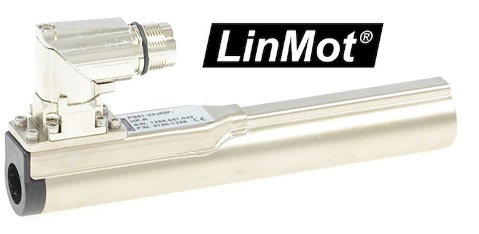

PS01-23x80-R Stator with IP67 connector M17/9(m)

Article no.: 0150-1233

Technical Data
Max. Stroke 780 mm
Max. Force 44 N
Continuous Force 8.6/16 N
Max. Velocity 5.9 m/s
Position Repeatability ±0.05 mm
Motor Cable
Supported Drives

Mechanical Data
Stator Diameter 23 mm
Stator Length 162 mm
Stator Mass 265 g
Slider Diameter 12 mm
Slider Length 130 - 850 mm
Slider Mass 90 - 700 g
