Mr. Bảo| Code: R221AQ1F91UEBG0 |

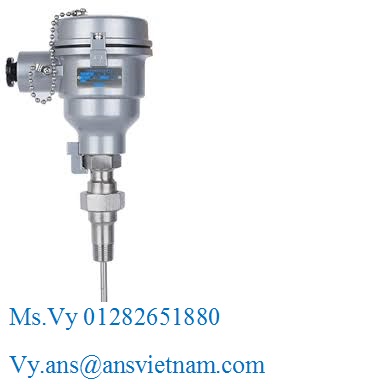

| - Model: R221 (Temperature Sensor for Semiconductor) |
| - Construction: Weather proof |
| - Head Material: Aluminum Alloy, Surface Color: Metallic Silver |
| - Terminal Block material: Ceramic |
| - ElementL: Pt100ohm at 0oC(DIN), SHEATH MgO insertion |
| - Grade “A”Class (±0.15%) |
| - Sheath material: 316SS |
| - Nipple material: 304 SS |
| - Terminal block and lead wire: Single (3 wire) |
| - Thread: PT ½ |
| Stem length: 200 |
| - Option: Test report, Grade: "A" Class |
| - Nipple: 21.7 * 100L, Con''''n: 1/2 PT |
| - Length: 500 L |
