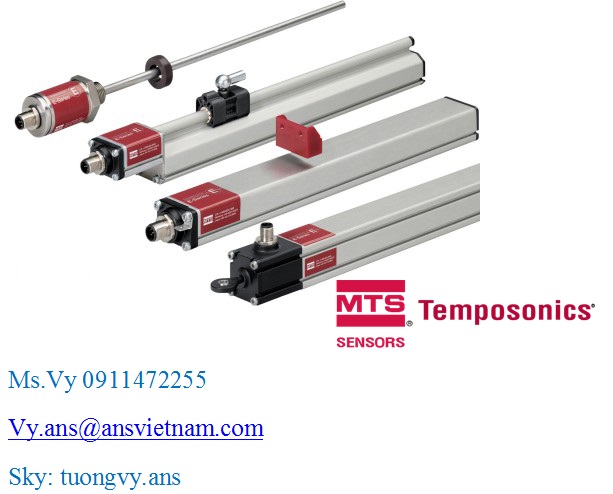

Mr. HuyMeasured value Position, velocity / Option: Multi-magnet measurement (max. 4 positions simultaneous) Stroke length Profile: 25…5000 mm / Rod: 25…7600 mm Output Interface Ethernet POWERLINK Standardization Group (ESPG) Data protocol POWERLINK V2 according to IEEE 802.3 Accuracy Resolution - Displacement up to 1 µm Update time 1.0 ms up 2400 mm / 2.0 ms up 4800 mm / 4.0 ms up 7600 mm stroke length Linearity 1 < ± 0.01 % F.S. (Minimum ± 40 µm) Repeatability < ± 0.001 % F.S. (Minimum ± 2.5 µm) Temperature coefficient < 15 ppm/°C Hysteresis < 4 µm Operating conditions Magnet movement velocity any Operating temperature 0…+70 °C Dew point, humidity 90 % rel. humidity, no condensation Ingress protection 2 Profile: IP65 / Rod: IP67 Shock test 100 g (single shock), IEC-Standard 6008-2-27 Vibration test 15 g / 10…2000 Hz, IEC-Standard 6008-2-6 (resonance frequencies excluded) EMC test Electromagnetic emission EN 61000-6-4 (for use in industrial environment) Electromagnetic susceptibility EN 61000-6-2 The sensor meets the requirements of the EC directives and is marked with CE Design/Material Diagnostic display LEDs beside connector Profile model: Sensor electronics housing aluminum Sensor profile aluminum Rod model: Sensor electronics housing aluminum Rod with flange stainless steel 1.4301 / AISI 304 Installation Mounting position any Profile moveable mounting clamps or T-slot nuts M5 in base channel Rod threaded flange M18×1.5 or ¾"-16 UNF-3A, Hex nut M18 Electrical connection Connection type 4 pin connector M12-DF, 4 pin connector M8 Operating voltage 3 24 VDC (−15 / +20 %) Polarity protection up to −30 VDC Overvoltage protection up to 36 VDC Current drain 110 mA typical Ripple (power supply) < 0.28 Vpp Dielectric strength 500 VDC (DC ground to machine ground)
