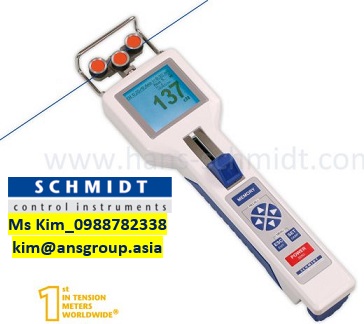

Tension meter DTS with large, backlight LCD-display

3 different display modes:
– numeric
– numeric with bargraph
– numeric with graph (Time-Tension)

The display rotates in 90° steps for better reading
New, unique, force reduced material catching system
Thickness compensation: to reach highest accuracy the diameter of the material to be measured can be set with a wheel and will be displayed in the screen (not available for all models)
Stellrad für die Materialdicke



Automatic „Zero-Setting“ in each measuring position using a special sensor technique
4 Material memory locations for customer made calibrations
Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
Programmable MIN- and MAX alarms:  indication in the display, if reading is out of limits

High speed data sampling (internal 8 kHz) and recording of MIN-, MAX-, last reading, PEAKS, average and standard deviation

Selectable units of measurement: cN, daN, g, kg, N, lb
Menu set-up in English or German language
Flexible menu set-up to meet operators demand
Some functions can be  password protected
