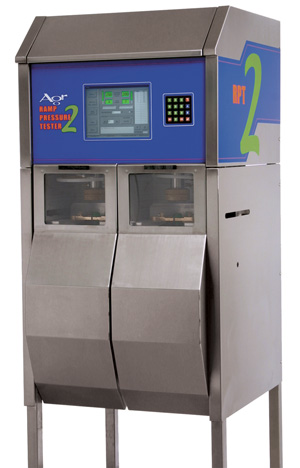

The Ramp Pressure Tester 2x_RPT2x
Xuất sứ: USA
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: AGR VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. Huy*) Mô tả:
The Ramp Pressure Tester 2x (RPT2x) is an advanced testing instrument developed for pressure testing glass containers. The RPT2x follows a long history of pressure instruments developed by Agr over the last 50 years. The RPT2x incorporates the best features of earlier Agr pressure testers with advanced electronics and automated functions to provide a testing system that is rugged, reliable, easy-to-use and can greatly improve laboratory efficiency. The RPT2x is ergonomically designed for ease of operation and maintenance, and fully conforms to international test requirements for glass containers per ASTM C-147.
New Features
- Fast-fill, two-bay operation
- Prefilled bottle capability
- Single-bay operation with right bay prefill
- Optimized pressure sequencing for two-bay operation
Features
- Interfaces with Agr Vertical Load Tester
- Dual chamber for fast throughput and cycle time
- Automatic clamping system
- Automatic filling
- Compensating pressure seal
- Safety interlocks on test chamber doors
- Self-contained hydrostatic test pressure generation via servo-driven piston
- Precision application of pressure per requirements of ASTM Test C-147
- Test pressure up to 900 psi (62 bars) – (1 minute equivalent)
- Standard 60 psi (4 bar) compressed air connection required for clamping and door interlocks
- Cavity correlated test results
- Pressure point (proof) and/or burst test modes
- Windows CE™ based operating system with data collection and output
- Tests bottles up to 120 oz. (4 liter)
- Stainless steel construction
