Size: 200

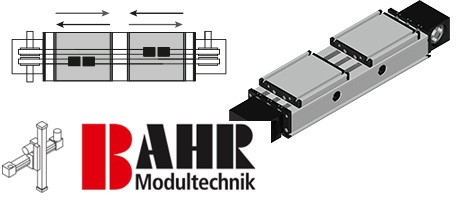

Belt drive with two separately driven carriages

This unit consists of a rectangular aluminium profi le with 2 integrated roller guides. The carriage is moved by a belt drive. Each carriage can be moved separately by its own drive. This unit has twin pulleys, which run on separate bearings, and two independent, parallel drive belts, one for each carriage. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the guide from splash water and dust.

Repeating accuracy:  ± 0.1 mm
Travel speed:            max. 6 m/s
