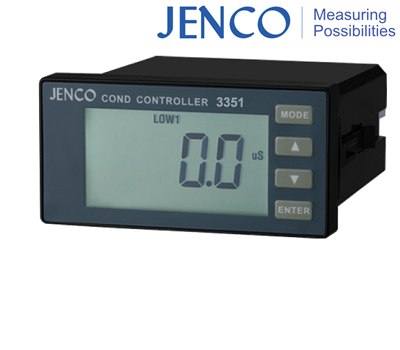

Mr. Huy3351 Thiết bị đo nhiệt độ Jenco Vietnam ANSdanang
Conductivity Range K=0.01-1 cm Range 1
0.000 to 1.999 uS/cm / 0.00 to 19.99 MΩ
Conductivity Resolution K=0.01-1 cm Range 1
0.001 uS/cm / 0.01 MΩ
Conductivity Accuracy K=0.01-1 cm Range 1
± 0.5% FS ±1 digit
Conductivity Range K=0.01-1 cm Range 2
0.00 to 19.99 uS/cm / 0.000 to 1.999 MΩ
Conductivity Resolution K=0.01-1 cm Range 2
0.01 uS/cm / 0.001 MΩ
Conductivity Accuracy K=0.01-1 cm Range 2
± 0.5% FS ±1 digit
Conductivity Range K=0.1-1 cm Range 1
0.00 to 19.99 uS/cm
Conductivity Resolution K=0.1-1cm Range 1
0.01 uS/cm
Conductivity Accuracy K=0.1-1 cm Range 1
± 0.5% FS ±1 digit
Conductivity Range K=0.1-1 cm Range 2
0.0 to 199.9 uS/cm
Conductivity Resolution K=0.1-1cm Range 2
0.1 uS/cm
Conductivity Accuracy K=0.1-1 cm Range 2
± 0.5% FS ±1 digit
Conductivity Range K=1.0-1 cm Range 1
0.0 to 199.9 uS/cm
Conductivity Resolution K=1.0-1cm Range 1
0.1 uS/cm
Conductivity Accuracy K=1.0-1 cm Range 1
±0.5% FS ±1digit
Conductivity Range K=1.0-1 cm Range 2
0 to 1999 uS/cm
Conductivity Resolution K=1.0-1cm Range 2
1 uS/cm
Conductivity Accuracy K=1.0-1 cm Range 2
±0.5% FS ±1digit
Conductivity Range K=1.0-1 cm Range 3
0.00 to 19.99 mS/cm
Conductivity Resolution K=1.0-1cm Range 2
0.01 mS/cm
Conductivity Accuracy K=1.0-1 cm Range 3
±0.5% FS ±1digit
Temperature Range
-10.0 to 120.0 °C
Temperature Resolution
0.1 °C
Temperature Accuracy
± 0.3 °C
Temperature Compensation
Manual/Auto -10.0~120.0 °C (Thermistor,10K ohm at 25.0 °C)
Cell Constant
0.01, 0.1, 1.0-1 cm,2 wire
Reference Temperature
25.0 °C, factory set
Temperature Coefficient
2.00 or 0.00 %, user selectable
Output
Isolated RS-485 output (Modbus protocol)
Maximum Load
500 ohm
Isolation Voltage
500 VDC
Display
LCD with backlighting
Power
100 to 240V AC at 50/60 Hz
Ambient Temperature Range
From 0 to 50 °C
Case
1/8 DIN case, 90mm depth
