Description

  • Temperature limits:
    -200 ... +600°C
  • Tolerance: UNI 7937, IEC 751 standards:
    ± 0.15°C at 0°C for class A (1/2 DIN)
    ± 0.30°C at 0°C for class B (1 DIN)
    ± 0.10°C at 0°C for 1/3 DIN class
  • Insulation: Mineral Oxide (MgO)

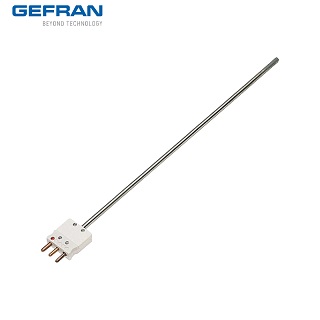

  • PT100 wire-wound resistance thermometer
  • Min. size: 100mm including connector
