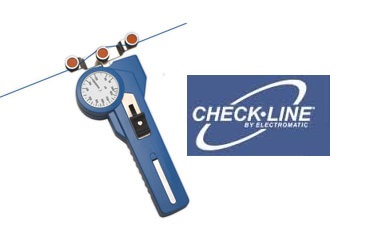

Mr. HuyThe DX2-EDM Hand-Held Mechanical Tension Meters are designed to measure the tension on all current wire EDM machines with using a wire diameter of approx. 0.25 mm. These models are used throughout the world and considered the standard tension meter for the industry.
The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check.
The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check.
- Easy-to-read analog scale
- Simple handling
- Special versions for specific EDM machines are available
- Measuring range 2000 g, 3000 g or 4000 g
- Calibration in cN is available
| Model | Range | Roller distance c:c mm |
Material Thickness Compensator |
Calibration Material |
|---|---|---|---|---|
| DX2-2000-EDM | 50 - 2000 cN | 75 | No | PA: 0.30 mm Ø |
| DX2-2000-EDM-G | 50 - 2000 g | 75 | No | PA: 0.30 mm Ø |
| DX2-3000-EDM | 100 - 3000 cN | 75 | No | PA: 0.30 mm Ø |
| DX2-3000-EDM-G | 100 - 3000 g | 75 | No | PA: 0.30 mm Ø |
| DX2-4000-EDM | 200 - 4000 cN | 100 | Yes | PA: 0.40 mm Ø |
| DX2-4000-EDM-G | 200 - 4000 g | 100 | Yes | PA: 0.40 mm Ø |
For meter calibrated in Grams add "-G" to part number, ie: DX2-2000-EDM-G
Material thickness compensator: For better accuracy the material to be measured or a similar material with the same diameter should be inserted (only model DX2-4000-EDM).
| Accuracy | ± 1% Full scale or ± 1 scale graduation mark |
| Rollers | Material : Hardcoated aluminum Diameter: 12 mm |
| Scale Diameter | 41 mm |
| Temperature Range | 8 - 45 °C |
| Humidity Maximum | 85% RH |
| Housing Material | Aluminum die casting |
| Dimensions | 215 mm x 90 mm x 44 mm (L x W x H) |
| Weight | (net/gross) approx. 500 g / 1000 g |
