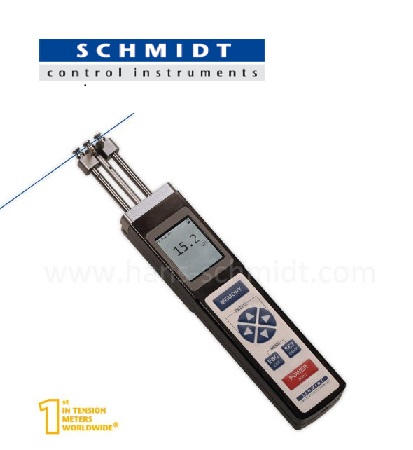

Tension Meter ETB and ETX:   5 Tension ranges available  from 0.3 - 100.0 cN up to 3 - 2000 cN

For fibers up to 2000 tex and Cu wire Ø 0.5 mm

Electronic tension meter for hard to reach and limited access space applications.
Available in two models: ETB (Basic unit) and ETX (with memory and outputs)

Hand-held instrument with guide rollers up to max. 2000 m/min

Tension meter with measuring head as small as possible

* Features:

Tension meter ETB and ETX with guide rollers mounted on long shafts to reach into tightest places

Hand-held instrument with ball-bearing mounted, V-grooved guide rollers up to 2000 m/min, for higher line speed use model ETPB or ETPX

Coloured, backlight TFT display with 3 different display modes
– numeric
– numeric with live bargraph
– numeric with graph (time-tension)

The display rotates in 90° steps for better reading

Automatic “Zero-Setting” in each measuring position using a special sensor technique

Selectable units of measurement: cN, g, N and lb

Very high data sampling rate (internal 1 kHz)

Storage of MIN, MAX, last reading, average and standard deviation per measuring interval

User-set MIN and MAX alarms with indication of TFT display if reading is out of limits

Adjustable electronic damping for better reading when tension fluctuates

3 separate calibration material memory locations for custom calibrations

Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material

Menu set-up in English or German language

Code Description  Keyword
ETB-100 Hans-schmidt Electronic tension meter  Hans-schmidt Tension Meter, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application
ETB-200 Hans-schmidt Electronic tension meter  Hans-schmidt Tension Meter, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application
ETB-500 Hans-schmidt Electronic tension meter  Hans-schmidt Tension Meter, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application
ETB-1000 Hans-schmidt Electronic tension meter  Hans-schmidt Tension Meter, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application
ETB-2000 Hans-schmidt Electronic tension meter  Hans-schmidt Tension Meter, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application
