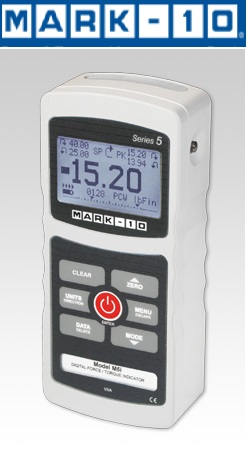

Advanced Force / Torque Indicator Model 5i_M5I/M5IE/M5IU/M5IA

Xuất sứ: USA

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: MARK-10 VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

* Đặt điểm

  • Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
  • Sensor password protection, for preventing use of an unauthorized sensor
  • Password protection for individual keys and calibration
  • High-speed 7,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • Large backlit graphic display
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Live load bar graph with set point markers
  • Programmable set points, with alarms and outputs
  • Peak readings and set points always displayed
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Automatic data output via USB/RS-232
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • CE mark
Model Description
M5I Force/torque indicator, 110V
M5IE Force/torque indicator, 220V European Plug
M5IU Force/torque indicator, 220V UK Plug
M5IA Force/torque indicator, 220V Australian Plug
