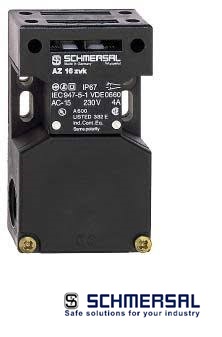

AZ 16

• Thermoplastic enclosure
• Double-insulated
• Large wiring compartment
• 52 mm x 90 mm x 30 mm
• Multiple coding
• Long life
• High level of contact reliability with low voltages and currents
• Insensitive to soiling
• Slotted holes for adjustment, circular holes for location

Compare



  Product type description Number of auxiliary contacts Number of safety contacts Design of electrical connection
Accessories AZ 16 - - -
Actuator AZ 16 - - -
AZ 16-02ZVRK-ST 0 2 Connector M12
AZ 16ZVRK-ST 1 1 Connector M12
AZ 16ZVK-ST 1 1 Connector M8, 6-pole, Latching interlocking
AZ 16ZVK 1 1 Screw connection
AZ 16ZVRK 1 1 Screw connection
AZ 16-12ZVRK 1 2 Screw connection
AZ 16-12ZVK 1 2 Screw connection
AZ 16-03ZVRK 0 3 Screw connection
AZ 16-03ZVK 0 3 Screw connection
AZ 16-02ZVRK 0 2 Screw connection
AZ 16-02ZVK 0 2 Screw connection
AZ 16-02ZVK-ST 0 2 Connector M12
