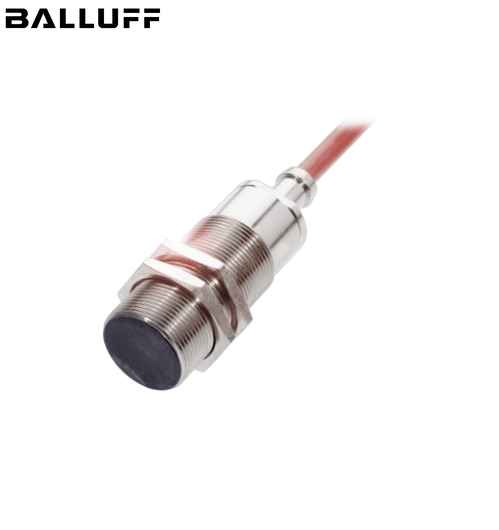

Model: BES02H7 BES 516-114-SA1-05/ Cảm biến cảm ứng (Inductive sensors)/ Balluff

    Model: BES02H7 BES 516-114-SA1-05/ Cảm biến cảm ứng (Inductive sensors)/  Balluff

    Key features:

Dimension: Ø 30 x 91.5 mm

Style: M30x1.5

Installation: for flush mounting

Range: 10 mm

Switching output: PNP normally open/normally closed (NO/NC)

Switching frequency: 300 Hz

Housing material: Brass

Surface protection: nickel plated

Material sensing surface: PBT

Connection: Cable, 5.00 m, Silicone

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...120 °C

Pressure rating max.: 207 bar

   IP rating: IP67
