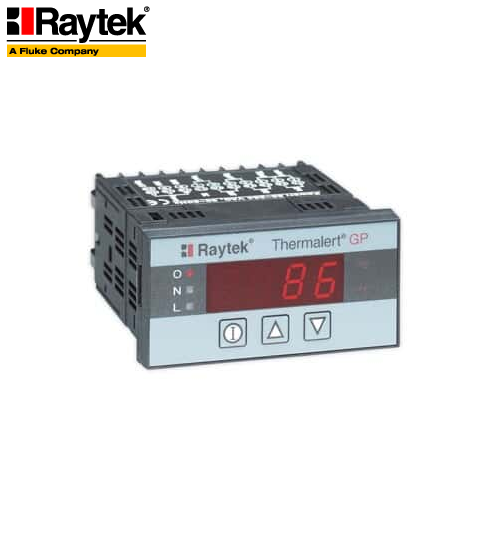

Bộ hiển thị (Panel Meter) - Raytek

Model: RAYGPC

Features:

  • Accepts any 0–5 V or 4–20 mA sensor input
  • Accepts type J, K, E, N, R, S, and T thermocouple inputs
  • 5V alarm outputs
  • Compact 1/8 DIN monitor
  • Large 4-digit LED display
  • Universal 110/220 VAC power
  • Provides 24 VDC/50 mA excitation voltage
  • User defined 4–20 mA or thermocouple output (J, K, E, N, R, S, T)
  • Adjustable dual setpoints and deadband controlling alarm outputs
  • Advanced signal processing capabilites including Peak and Valley Hold, Averaging and User adjustable offset
  • External reset input
