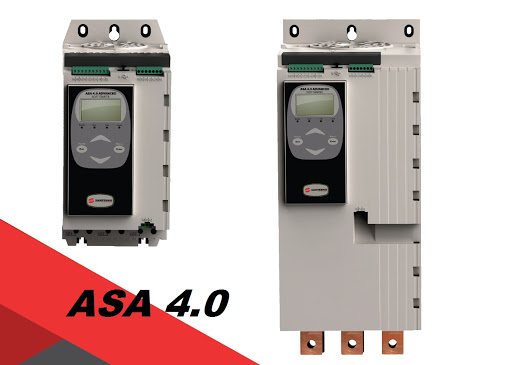

ASA 4.0

For optimum motor control

Soft starter for 3- phrase asynchronous Motor

Bộ khởi động mềm  - Soft starter - ASA 4.0  tối ưu hóa cho mô tơ không đồng bộ 3 pha

  • Protection:
  • Over/Undercurrent
  • Current Imbalance
  • Motor Therrmistor
  • Phase sequence
  • Phase Loss
  • Power Loss

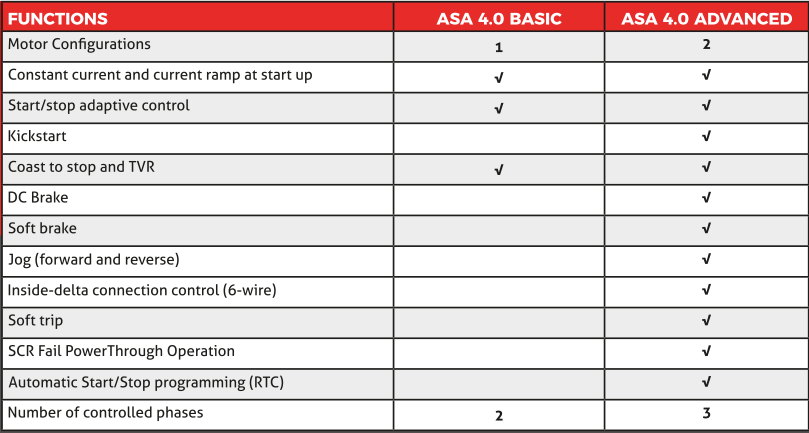

Santerno cung cấp 2 dòng ASA 4.0 :

  • ASA 4.0 BASIC  soft starter for in –line connection

           Bộ khởi động mềm ASA 4.0 Dòng cơ bản cho kết nối trong dây chuyền

  • ASA 4.0 Advance softstarter for advance motor control in line or inside-delta connections.

          Bộ khởi động mềm ASA 4.0 Dòng nâng cao

  • Current & overload range:
  • 24A to 580A (nominal)
  • 3 x 200 to 3 x 525Vac or 380 to 690Vac
  • Overload up  : to 600% of the rated current
  • Integrated USB port to:
  • Update the drive software
  • Copy programing
  • Store logs to USB stick
  • Communications: Modbus RTU, Profibus, DeviceNet, Modbus TCP, Profinet, Etherrnet IP
  • Pumping Smart Card Option Board : Allows connecting the plant sensors directly to the soft starter
  • Certificate : CE, RoHS, EAC, RCM, UL, Lloyd’s Register
