Cảm biến báo mức dạng xoay (Rotary paddle type level switch)

Xuất sứ: Japan

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: TOWA SEIDEN VIET NAM

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

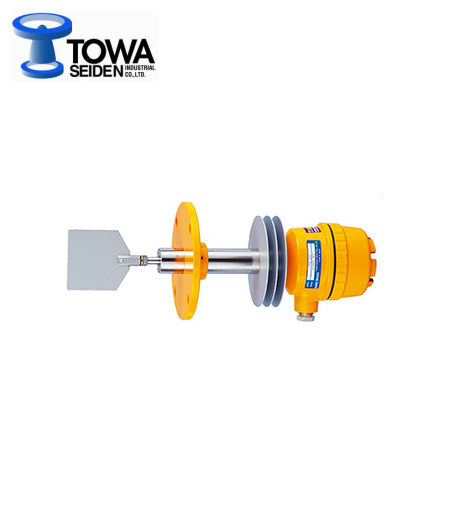

Cảm biến báo mức dạng xoay (Rotary paddle type level switch) - Towa Seiden

Model: PRL-201S-4PB

Specifications:

Power voltage: 100/110V AC 50/60Hz, or 200/220V AC 50/60Hz

Attaching method: Flange attachment JIS 5K65A

Power consumption: 2.5W

Contact output: 1C contact 250V AC 5A (resistance load)

Detection torque (*1): About 10.0 N cm

Slip torque (*2): About 30.0 N cm

Rotation speed: 1 rpm

Material Main body case, flange: aluminum casting Main shaft, blade: SUS304 Seal: nitrile rubber

Operating temperature: Inside the tank: 70 C max. Outside the tank: 55 C max.

Operating pressure: Inside the tank: 0 - 196 kPa Paint color Munsell 10YR7.5/1
